what is this?
The most powerful real time water leaks detection system that exists in the world.
The system monitors the water flow and calculates the difference between any water leaks and excess consumption.
This award winning system is patented worldwide (Europe, North and South America, Asia and Australia).
Gold medals from the Concours Lepine (an annual competition for French inventions) held at Paris in 2010 and Nantes in 2009.
Gold medal from the Geneva International Invention Competition in 2010.
How does it works?
The definition of a leak is an unusually long water flow. The water leak detection system is an autonomous safety device which monitors your water flow. It detects water leaks with a special patented program which calculates the difference between leaks and excess consumption
The leak detection starts from 1 litre/hour.No water leaks can escape its vigilance.
Thanks to an algorithm, the system analyses the water flow in real time.
The detection is 100% reliable. We guarantee no false alerts.
A remedy against wasting water
Already used by government offices, private offices and individual owners in France and Switzerland, we can see that our system is the future of plumbing water networks.
Figures concerning water leaks show that it is a major global problem. In France, we can consider that 1/3 of the (drinking) water is lost from the water networks.

The computer below shows the leaks escaping from the water network in France. The first line shows the figure from January 1st and the second line shows the figure since your connection to this web page. The problem is exactly the same or even worse in the rest of the world. Other examples:the U.K. water price per m3 is £ 2.81 , with an annual increase of 5%.
A dripping tap costs approximately £190 to 940 per year
A continually trickling toilet flush costs approximately £470 to 2815 per year
A burst water pipe costs approximately £940 to 4690 per yearnot forgetting the additional costs caused by the water damage.

There are 20 companies supplying water in England and Wales and you cannot switch your water supplier.
This means that water supply is a big business and the prices are going to increase, as they will all over the world.
According to insurers, a water leak claim is 3 times more likely to be made than a theft claim, and 13 times more likely than a fire claim
Insurers received a staggering 3500 claims per day last winter. Household damage caused by burst pipes averaged at £25,000 per household.

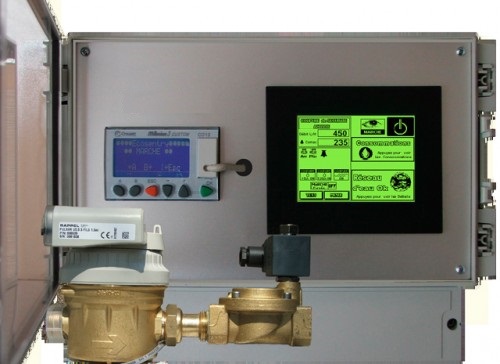

Standard installation
1
Control panel
2

Water meter, adapted to the nominal diameter (DN) of the main incoming water pipe and a transmitter (PULSAR) connected to the system control panel.
3

Solenoid or motorised valve connected to the system control panel.
4
Power cable to the control panel protected by a 10 amp circuit-breaker.
Made to measure system
The system can be adapted to any water network:
Apartments, houses, office blocks, shops, warehouses, factories, irrigation systems, swimming pool auto fill systems and collective heating systems. We will provide you with the best technical solution adjusted to your specific water networks and needs!
  • Privately-owned houses and semi-tertiary properties:
    It’s very interesting for apartments, individual houses and small shops. . You can sleep peacefully, Our technology over your water network day and night.
    The system alerts you immediately when a leak is detected. The main incoming water pipe is stopped with a solenoid valve. The damages are thus limited avoiding important water loss and the additional expenses involved.
    There is also an automatic cut-off after 72 hours of not using water.
    For further details about this model
  • Public buildings and industrial properties:
    It’s very interesting for buildings, co-ownerships, warehouses and factories ... The system watches your water consumption in real time and gives you an alert if it is excessive.
    You can display statistics on boards and graphs to help you manage your water consumption.
    Water consumption recordings are given in hours, days, months and years.
    For further details about this model
  • Irrigation systems
    It’s useful for farms, communities, sport stadia and parks.
    For further details about this model
  • Heating for collective ownership properties &blocks of flats
    It’s useful for companies that must deal with the maintenance of these kinds of facilities and for other co-ownerships and communities. With a remote processing system you can control all the installations with a simple click. The auto fill of your heating system is monitored.
    It is compatible with the BMS message type: water leak alert / excess consumption / system breakdown. For further details about this model
Privately-owned houses
Semi-tertiary properties.
We provide surveillance of the general water consumption, the irrigation systems and any swimming pool installations.
  • Monitoring of any leaks
    At each impulse, the system calculates the amount of water flow and memorizes it for each level.
    The alert is given when a water leak is detected. t is given as soon as the leak reaches 1 litre/hour and the water is automatically cut off
    The technology helps you to avoid wasting water in the event of a leak and it limits the water damage and the costs involved to repair them.
  • Monitoring of water consumption
    The system watches your water consumption in real time and gives an alert if it is excessive.
    You can see the statistics displayed on boards and graphs.
    The recordings are given in hours, days, months and years.
    There is an automatic cut-off after 72 hours of not using water.
  • Monitoring of the transmitter
    TThe system permanently watches the state of the transmitter’s battery. If the main transmitter stops working it will send you an alert.
    The expected battery life is 15 years.
  • Quick and easy installation
    An automatic configuration of the system is carried out when it is installed.
    There is on-going assistance during the use of the system and its configuration.
    Help pages can be found in the user manual and via the touch-screen on the control panel.
Irrigation
We provide surveillance of the general water consumption and any leaks in your automatic irrigation systems
Up to 12 irrigation zones can be controlled by the system

Water Saving

Save at least 30% off your water consumption.
We look out for any joint leaks, piping leaks or drips.
A solenoid valve stops the main water supply immediately in the case of an alert.

  • Monitoring of water consumption

    The system watches your water consumption in real time. It is able to manage both the general consumption and the consumption by zones.
    Recordings can be given by day, month and year.

  • Monitoring of irrigation zones

    The system permanently watches the irrigation zones. In the case of a leak in a specific irrigation area, the system sends an alert then cuts off the defective zone. Consequently, if you modify the network of a zone it will be necessary to do an individual study of that area. A change in the duration of the irrigation has no incidence on the system.

  • Option: Rain sensor

    By choosing this option the irrigation system is automatically suspended when it rains.
  • Heating for collective ownership
    properties& blocks of flats:
    Dynamic water leak detector

    Water leaks are detected from 1l/hour when filling the pipes.
    Detection of the water injected into the system by auto fill devices.

  • Broken pipes or leaking heating circuits

    Detection of water leaks on auto fill solenoid valves.
    Detection of water leaks on the heating system network.
    Indication of the smallest water flow registered on each day.
    Recordings can be given by day, month and year.

  • Fast alert, limited damages, minimum water loss in the event of a leak. An end to huge water bills.

    By pressing the ALARM button displayed on the panel control touch-screen the system can show you the cause of the alarm:
    Water leaks are detected on the main water networks.
    Excess consumption is looked at on the main water networks..
    Optional: possibility to detect leaks under the floor with a water sensor.

  • Monitoring of water consumption

    The threshold for the water consumption alert can be adjusted depending on your water needs.
    During the day if the consumption is excessive, the system gives an alert.The system displays the average water consumption per hour.
    You can receive fast detailed statements of the water consumption.
    Statistics can be seen on boards and graphs to quickly see the importance of the leak and to know exactly when it occurred.
    Recordings of the average water consumption can be given by hour, day, month and year.

  • Optional: flood detector

    By choosing this option the flood detector system is linked to the system panel.
    You can connect up to 4 water detectors or float switches.

  • Monitoring of the transmitter

    The system permanently watches the state of the transmitter’s battery.If the main transmitter stops working it will send you an alert.

  • Monitoring the water flow

    At each impulse, the system calculates the amount of water flow and memorizes it for each level.
    The alert is given when a water leak is detected either in the heating network or when filling the pipes.
    The system watches the state of the transmitter and warns if the battery needs replacing.
  • Videos Presentations
  • General models



  • Individual residential leak detection



  • Collective residential leak detection




  • Options for every model :
    • Phone transmitter
      In case of leak detection , with the phone transmitter you are warned directly on you mobile phone or on your computer by e-mailIn you choose this option; you will receive an alert immediately and directly on your mobile phone when a leak is detected.
      Up to 10 phone numbers can be registered on the phone transmitter, for example maintenance personnel, plumber, people in charge of the site maintenance…
    • Radio transmitter and receptor :
      These transmitters and receptors can be used if it is impossible to use land line connections as they use radio waves. They also move the information to the control centre.
    • Battery backup 12V power :
      Battery backup in case of a general power supply cut.
    • Red light :
      This is a complementary visible warning.
    • Humidity detector:
      It activates the alarm when it detects humidity on the ground in a certain zone (collective boiler, heating system rooms, room with goods...).
    • Communication with NETBITTER easy Connect EC220 and NETBITTER ARGOS :
      It allows a remote control of all your water facilities. The NETBITER ARGOS is a remote management concept; geo-localisation, know exactly what is happening without going on site, manage priorities for the maintenance teams and avoid useless interventions.
    Public buildings and industrial properties:
    DN 25 to DN 100 (supply diameter 32-120mm))
    • Dynamic water leak detector
      Leak detection starts from 10l/h, 25l/h, 40l/h (DN32- DN50-DN100).
    • Monitoring of water consumption
      The system watches your water consumption in real time and gives an alert if it is excessive.
      You can see the statistics displayed on boards and graphs.
      The recordings are given in hours, days, months and years.
      Automatic cut-off after 72 hours of not using water can be choosen in option.
    • Monitoring of the transmitter
      The system permanently watches the state of the transmitter’s battery. If the main transmitter stops working it will send you an alert.
    • Quick and easy installation
      An automatic configuration of the system is carried out when it is installed.
      There is on-going assistance during the use of the system and its configuration.
      Help pages can be found in the user manual and via the touch-screen on the control panel.
    The available models
    • Phone transmitter
      In case of leaks detection, if you choose this option of phone transmitter, you are directly warned on your mobile phone. This option allows you to call immediately the service maintenance , or your plumber, or every person in charge of your water network who can intervene quickly.
    • Radio transmitter and receiver :
      This transmitters and receivers allow a connection by waves in case of impossibility of wired connections and deport the informations to the system panel.
    • Battery backup power 12V :
      Emergency battery in case of general electrical power supply failure.
    • Red light :
      Visible warning, this is a complementary warning.
    • Humidity sensor :
      this option activates the alarm in case of humidity on the ground in a zone. (Storage room to preserve goods, Hotel suite, collective heating system, ...)
    • Communication via MODEM MO3MOD, RTC or GSM :
      Allows to pilot its remote installation, to avoid useless interventions, to manage priority of your maintenance teams and to avoid the useless movements.
